CS-6强力型分度头，台湾鹰牌分度头

VERTEX Super indexing Spacer,CS-6,8 VERTEX台灣鷹牌分度頭

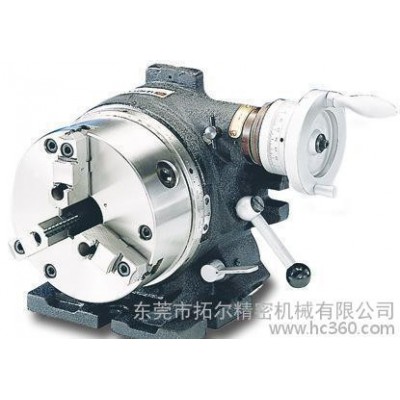

PHOTO 1. SHOWS CS-8 with VSK-8 3-JAW

PHOTO 2. SHOWS MASKING PLATE&FACE PLATE

FEATURES

1.This index combines the advantages of the Super Index with those of a worm-geared index.

When mounted on a milling, boring or other machine tool it can carry out single-purpose indexing and indirect indexing using the worm-drive mechanism.

2.Disengaging the worm drive the 24-notch master plate permits 2,3,4,6,8,12 and 24 dividing in the same manner as the Simple Index.

3.When the chuck is removed, the unit can be used as a horizontal and vertical type rotary table. The operating handle to rotary table worm gear reduction ration is 1:90.

The operating handle collar is graduated in in one minute, and readings down to ten seconds can be set on the vernier.
