品牌:MHC
型号:36、81、32、88、47、112、103
起订:10000套
供应:10000套
发货:30天内
| 品牌 | MHC |
|---|---|
| 型号 | 36、81、32、88、47、112、103 |
| 类型 | 精密量规 |
| 测量范围 | 机床等精密仪器 |
| 加工定制 | 否 |
| 规格 | 32 36 47 81 83 87 103 112 |
现货供应，库存充足！
参数：
- Higher degree of accuracy when used at temperature of 68°F(20°C).
- Individual serial numbers on each block,regardless of grades.
- A complete certificate of calibration traceable to the N.I.S.T.showing the deviation of each block.

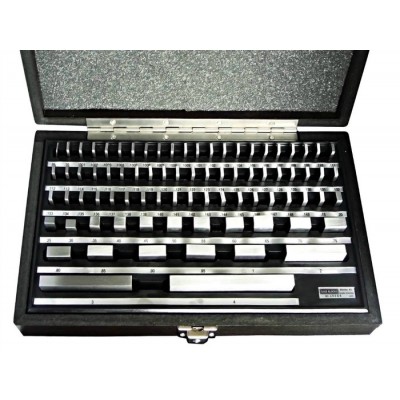

- All sets are supplied in deluxe fitted wood case.
- All sets meet or exceed Fed.Spec.ASME B89.1.9-2002
- Mirror polished suifaces provide superior wringing characteristics.
36套装包含以下规格：
1 Blocks：0.050";
2 Blocks：0.1001"-0.1009" by 0.0001" steps
9 Blocks: 0.101"-0.109" by 0.001" steps
9 Blocks: 0.110"-0.190" by 0.010" steps
5 Blocks: 0.100"-0.500" by 0.100"steps
3 Blocks: 1,2,4"
81套装包含以下规格：
9 Blocks：0.1001"-0.1009" by 0.0001" steps
49 Blocks: 0.101"-0.149" by 0.001" steps
19 Blocks: 0.050"-0.950" by 0.050" steps
4 Blocks: 1.000"-4.000" by 1.000"steps
32件套装包含以下规格：
1 Blocks：1.005mm;
9 Blocks: 1.01mm-1.09mm by 0.01mm steps
9 Blocks: 1.1mm-1.9mm by 0.1mm steps
9 Blocks: 1mm-9mm by 1mm steps
4 Blocks:10mm,20mm,30mm,50mm
47件套装包含以下规格：
1 Blocks：1.005mm
20 Blocks：1.01mm-1.20mm by 0.01mm steps
7 Blocks: 1.3mm-1.9mm by 0.1mm steps
9 Blocks: 1mm-9mm by 1mm steps
10 Blocks: 10mm-100mm by 10mm steps
87件套装包含以下规格：
9 Blocks：1.001mm-1.009mm by 0.001mm steps
49 Blocks: 1.01mm-1.49mm by 0.01mm steps
19 Blocks: 0.5mm-9.5mm by 0.5mm steps
10 Blocks: 10mm-100mm by 10mm steps
88件套装包含以下规格：
1 Blocks：1.0005mm
9 Blocks：1.001mm-1.009mm by 0.001mm steps
49 Blocks: 1.01mm-1.49mm by 0.01mm steps
19 Blocks: 0.5mm-9.5mm by 0.5mm steps
10 Blocks: 10mm-100mm by 10mm steps
103件套装包含以下规格：
1 Blocks：1.005mm
49 Blocks：1.01mm-1.49mm by 0.01mm steps
49 Blocks: 0.5mm-24.5mm by 0.5mm steps
4 Blocks: 25mm-100mm by 25mm steps
112件套装包含以下规格：
1 Blocks：1.0005mm
9 Blocks：1.001mm-1.09mm by 0.001mm steps
49 Blocks: 1.01mm-1.49mm by 0.01mm steps
49 Blocks: 0.5mm-24.5mm by 0.5mm steps
4 Blocks: 25mm-100mm by 25mm steps
基本参数
品牌：
MHC 型号：
公制46件组量块 类型：
精密量规 测量范围：
检测，校准 加工定制：
是 详细说明
规格型号 订货号 单价 备注 46Pcs Grade 0 630-0460 非备货产品，7-15天供应 46Pcs Grade 1 630-0461 非备货产品，7-15天供应 46Pcs Grade 2 630-0462 非备货产品，7-15天供应
