品牌:NDT Systems

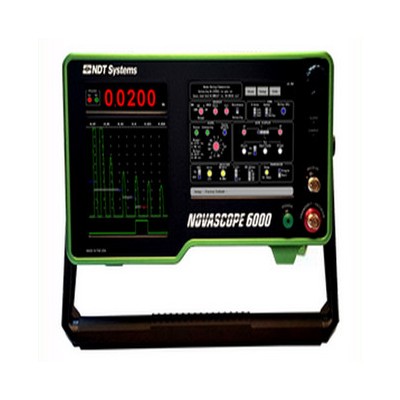

型号:Novascope6000
起订:1
发送询价
| 品牌 | NDT Systems |
|---|---|
| 型号 | Novascope6000 |
| imensional Readout | English and Metric Gaging Range English: 0.005-10 inches; Metric 0.13-100 mm (depending upon material) | |
| Digital Resolution | English Units | ± 0.0001" on 1" range ± 0.001" on 10" range |
| Metric Units | ± 0.001 mm on 10 mm range ± 0.01 mm on 100 mm range | |
| Measuring Mode | Sets mode for contact, delay line or immersion transducers | |
| Readout Mode | Selects digital display for thickness or velocity | |
| Pulser | Risetime | 5 ns |
| Amplitude | 150, 250, 400 volts Peak into 50 Ohms | |
| Repetition rate | 625, 1250, 2,500, 5000 Hz | |
| Damping | 15 to 520 Ohms - 1 Ohm increments | |
| Receiver | Adjustable gain | 100 dB |
| Automatic gain control | 100 dB dynamic range | |
| Reject | Variable threshold to full scale | |
| Bandwidth | Bandwidth | 30 MHz (3 dB down) |
| Attenuator | Attenuator | 0, 10, and 20 dB selectable |
| A-Trace Display | Sweep width | Switchable down to 50 ns/Div Continuously adjustable |
| Sweep delay | 1 ms to 80 ms | |
| Display | Dual Trace; A-Trace plus selectable Gate Traces (IP, IF, T or TAC) | |
| Display modes | Full wave RF, positive or negative Rectified | |
| T-Gate | Thickness gate with adjustable sync | |
| T-Gate Start/Stop | Selectable on positive or negative half cycles | |
| IP-Gate | 0.25 to 20 ms (contact), 1.0 to 0 ms (continued) (delay or immersion) | |
| IF-Gate | 0.1 to 8.0 ms | |
| TAC-Gate | Adjustable thickness amplitude Compensation of gain Start control: 0.02 to 6 ms Amplitude control: 0 to 100 dB Slope control: 0.1 to 50 ms | |
| Alarms | Three functions: LO, HI, LO/HI | |
| Outputs | Alarms, Analog thickness Serial RS-232C, IP Sync and USB | |
| Inputs | External sync | |
| Power Source | Power Source | Battery & AC |
| Power Consumption | 50 Watts | |
| Warranty | One year |
